The steel prop is a structure used to support the floorslab, which plays a supporting and bearing role in the process of concrete pouring and shaping.
Steel Prop

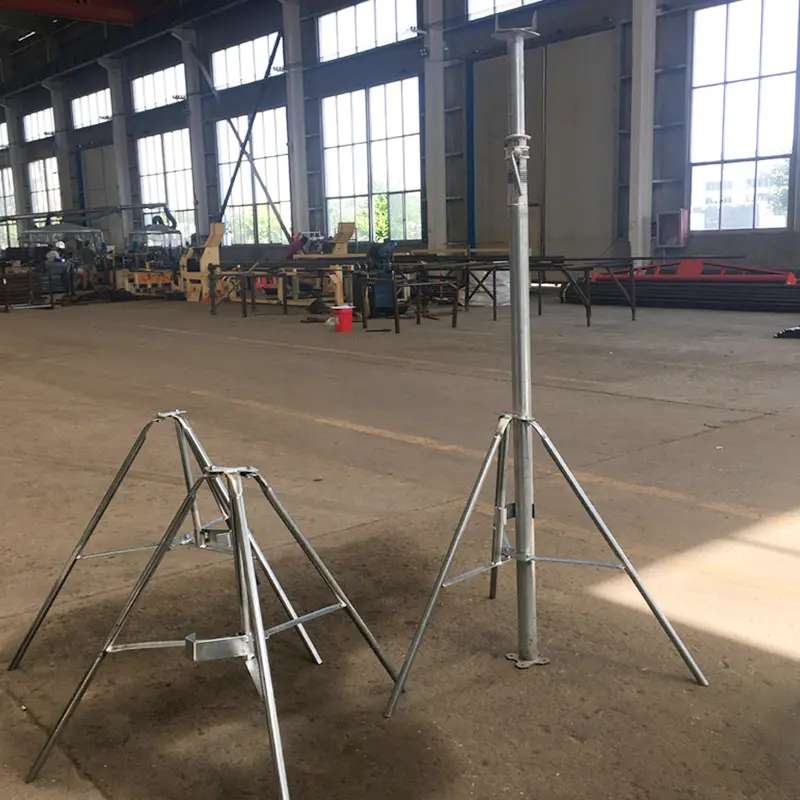

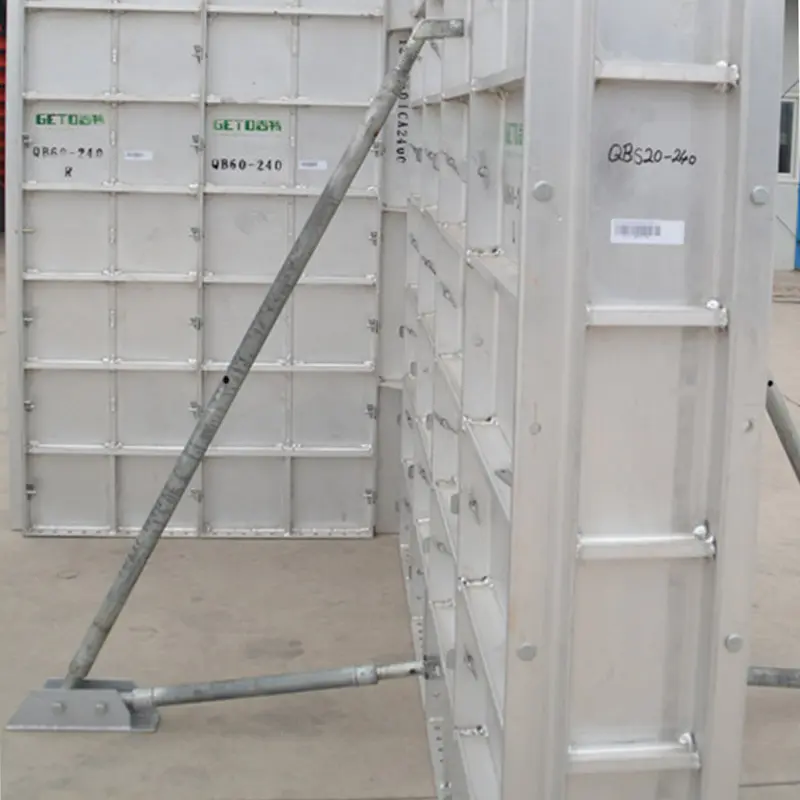

Steel Prop is an essential load-bearing component widely applied in building projects, It is stable vertical support for formwork systems, scaffolding, and temporary structures. The steel prop is specifically designed to bear heavy loads, including the weight of concrete formwork, fresh concrete, or construction personnel and equipment, It can ensuring structural stability and safety during the construction process.
Steel Prop Specifcation
Product | Material | Bearing Capacity | Steel prop Application |
Steel Prop 3.0mm | Q235 | 1.8t | Used to support floor which is shorter than 5.0m,and the support spacing is less than or equal to 1.35mx1.35m,which is used for the support of ordinary aluminium alloy floor formwork. |
Steel Prop 3.5mm | Q345 | 2.3t | Used to support floor which is less than 5.0m,which is used to support the rapid roof system with a spacing of 1.2m x1.9m,and the unilateral support formwork system. |
Steel Prop Dimensions
Min Height (m) | Max Height (m) | Inner Tube (mm) | Outer Tube (mm) | Tube Thickness (mm) |
1.6 | 2.9 | 48 |
60 | 1.4-4.0 |
1.8 | 3.2 | |||
2.0 | 3.5 | |||
2.0 | 3.6 | |||
2.2 | 4.0 | |||
3.0 | 5.0 | |||
3.5 | 6.0 | |||
0.6 | 1.1 | 40 | 48 | 1.4-2.5 |
0.8 | 1.4 | |||
1.6 | 2.9 | |||
1.8 | 3.2 | |||
2.0 | 3.6 | |||
2.2 | 4.0 | |||
1.6 | 2.9 | 48 | 56 | 1.4-2.5 |
1.8 | 3.2 | |||
2.0 | 3.5 | |||
2.0 | 3.6 | |||
2.2 | 4.0 |
GETO GROUP was founded in 2011. At present, GETO has established 12 production bases around the world. Our products have been exported to more than 70 countries and regions, and we have registered the GETO® trademark in more than 30 countries. Our company has passed many authoritative certifications such as ISO9001 and ISO14001, and has obtained multiple international qualifications including Singapore BCA BAND2 and Malaysia CIDB G7. We have successfully established a complete overseas service system and possess localized operation capabilities.
Order & Cooperation
We will try our best to meet the diverse needs of global partners, with detailed specifications as follows:
1. Minimum Order Quantity(MOQ): You can place an order for a single unit only; we do not require a strict minimum quantity. We can adapt to different products flexibly depending on what you need for your project, even if it is just a small volume or large volume order.
2.Shipping: Our choice of shipping modes includes sea and land freight. Taking your position and the amount of goods into account, we will propose the most fitting and budget-friendly way for you to get your merchandise delivered safely and punctually.
3. Packaging Detail: All products are packaged in export-standard packaging, we are able to use various types of packaging to ensure we meet your product's protected needs and can ship them accordingly. Some of these types are pallets, plywood crates, and wooden frame crates etc.
4. Payment Terms: Our range of payment options includes TT (Telegraphic Transfer) and LC (Letter of Credit). Payment percentages and key points are open for discussion and can be changed in a flexible manner depending on order value and the current stage of cooperation so that your funds are safe and the order process is carried out as planned.
5. Sample: We give you samples of our products that help you examine and test before making a formal order. This allows you to decide to what extent our products suffice.
6. Logo Customization: We support logo customization service. According to your brand needs, helping you enhance brand exposure.
7. OEM Service: We provide professional OEM service, integrating design, production and customization according to your specific requirements, providing one-stop OEM solutions to meet your personalized cooperation needs.
8. Certificate： Our products have obtained international certification certificates such as ISO etc, and we are committed to providing customers with high-quality products and professional services to meet global quality standards and customer expectations.
