Aluminium Formwork System
- GETO
- China
Aluminium formwork is mainly used to solve the formwork construction of the cast-in-place concrete structure in housing buildings, offering advantages such as shortening the construction period and eliminating the need for plastering. By using aluminium formwork, it is possible to complete the pouring construction of one floor in 3 to 5 days.

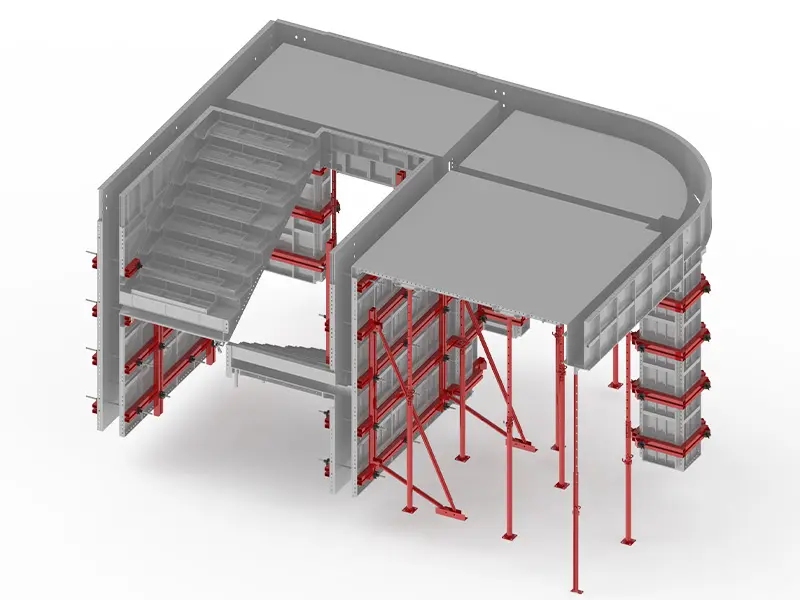

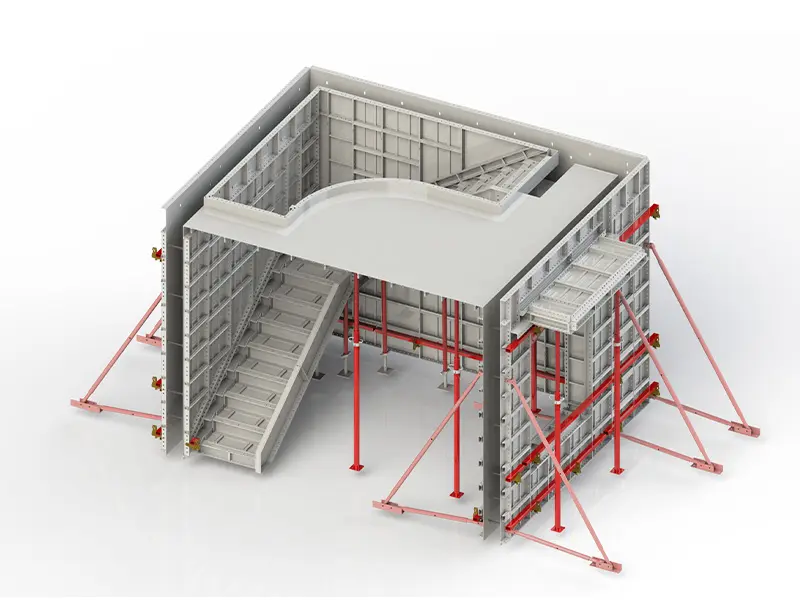

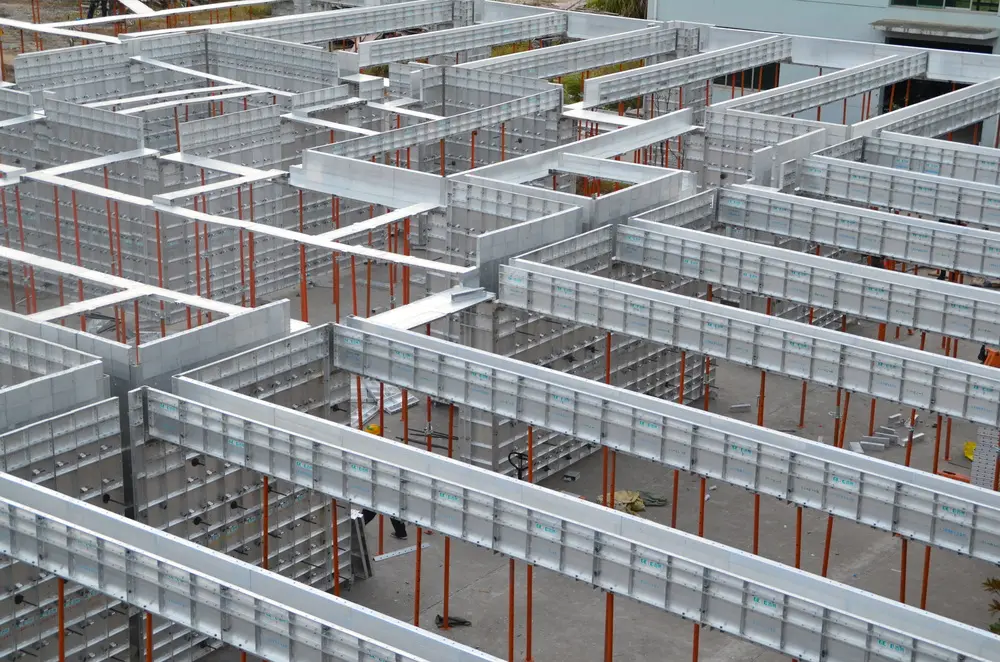

Aluminium Formwork System
Flat-Tie System
The aluminium formwork with the flat tie reinforcement system is free of drilling, with the good vertical casting effectand fewer installation accessories, reducing the installation workload of workers, which is more in line with the use habits of workers in different countries.
Tie-Rod System
The forming effect of the tie-rod reinforcement system is very smooth. The tie-rod reinforcement system is more suitable for the refurbishment project with different structures and the project with wall thickness structures larger than 400mm.
Advantages
· High standardization in design: The aluminium formwork has a high rate of reuse, allowing for up to 200–300 reuse cycles, and is simple to install and disassemble.
· Excellent forming effect: Achieve verticality and flatness within 5 mm, reaching true plaster-free for both interior and exterior walls.
· High safety: The aluminum formwork material is characterized by its high strength, high bearing capacity, and resistance to deformation, forming a highly stable frame once the system is assembled.
· Less comprehensive cost: High utilization reduces integrated costs, lowers labor expenses due to quick assembly, minimizes heavy equipment leasing, cuts plastering and decoration costs, and benefits from high scrap value.
Specifcation
Item | Specifcation | |
Aluminium Alloy (6061-T6) | Poisson's ratio (Va) | 0.3 |
Density (ρ) | 2.7g/cm³ | |
Elasticity modulus (Ea) | 70000N/mm² | |
Yield strength (Fa) | 200 N/mm² | |
Shear strength (Fva) | 115N/mm² | |
Composition | Inner & Outer wall paneland corner panel | |
Beam bottom & side panel and corner panel | ||
Slab panel & prop head and corner panel | ||
Staircase panel | ||
Alloy Temper | 6061-T6 | |
Material Type | Complete extrusion | |
Main Welding Type | Friction Stir Welding | |
Thickness of Panel | 4mm | |
Thickness of Frame | 8mm | |
Height of Frame | 63.5 / 65mm | |
Standard Wall Panel Width | 50mm to 600mm | |
Standard Wall Panel Height | 2,400mm | |
Standard Slab Panel Size | 600mm X 1,200mm | |
Weight of Aluminium Panel | 25kg/sq.m | |
Standard Prop | Adjustable steel prop | |

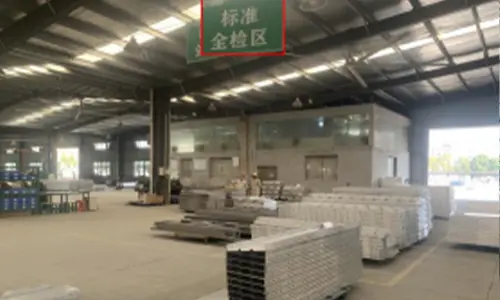

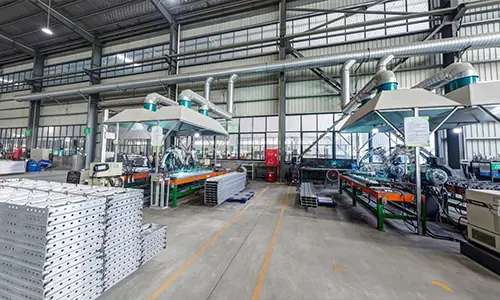

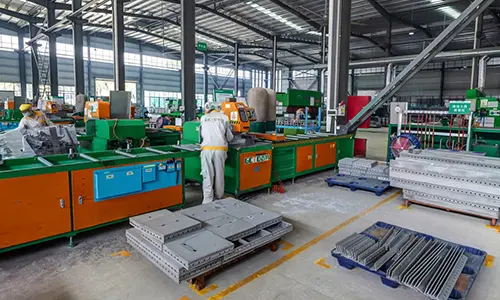

Production Process

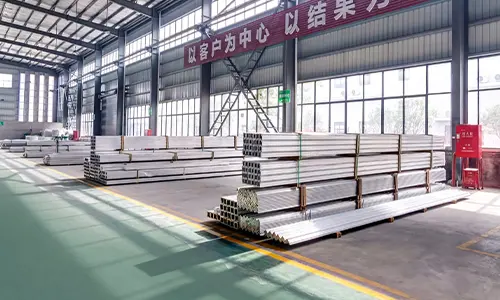

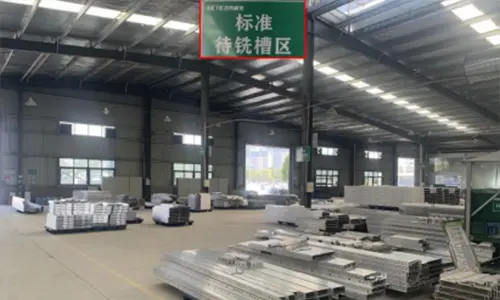

Aluminum profile
Cutting
Punching & Drilling
Grooving

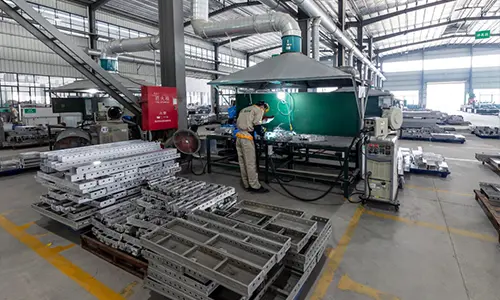

Welding
Full Inspection

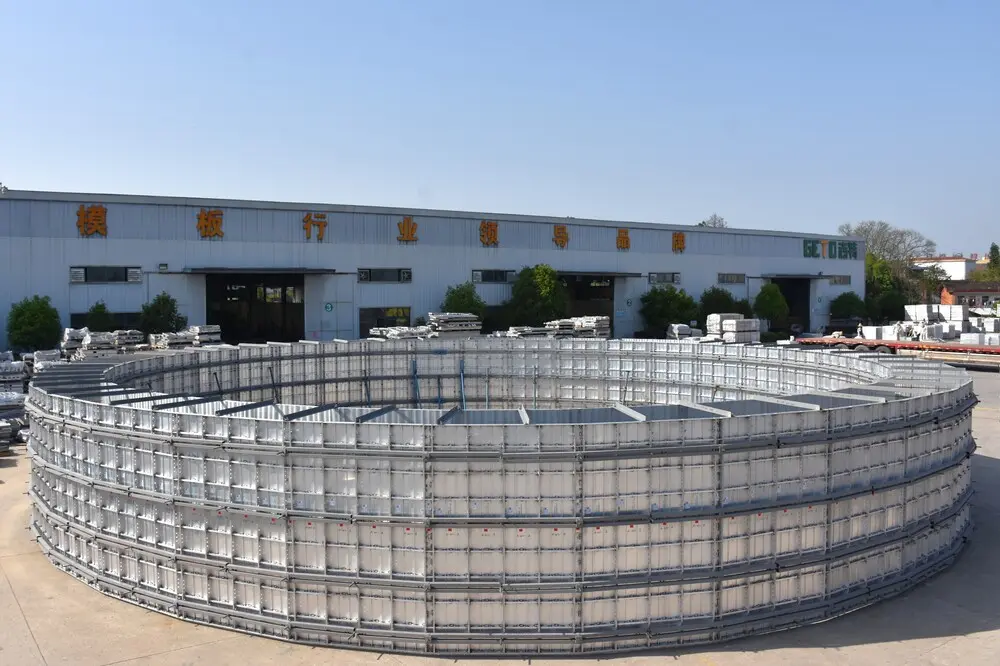

Aluminium Formwork

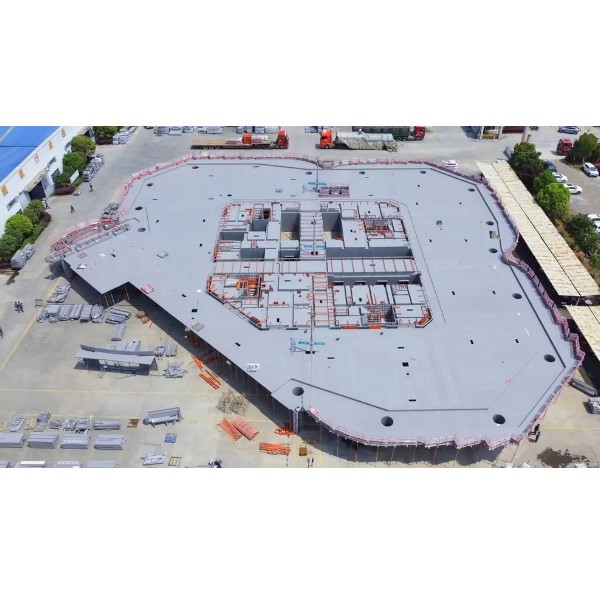

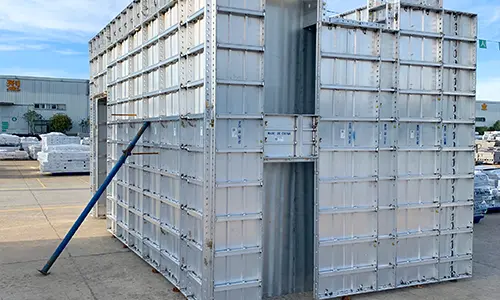

Trial-assembly (Optional)
Details

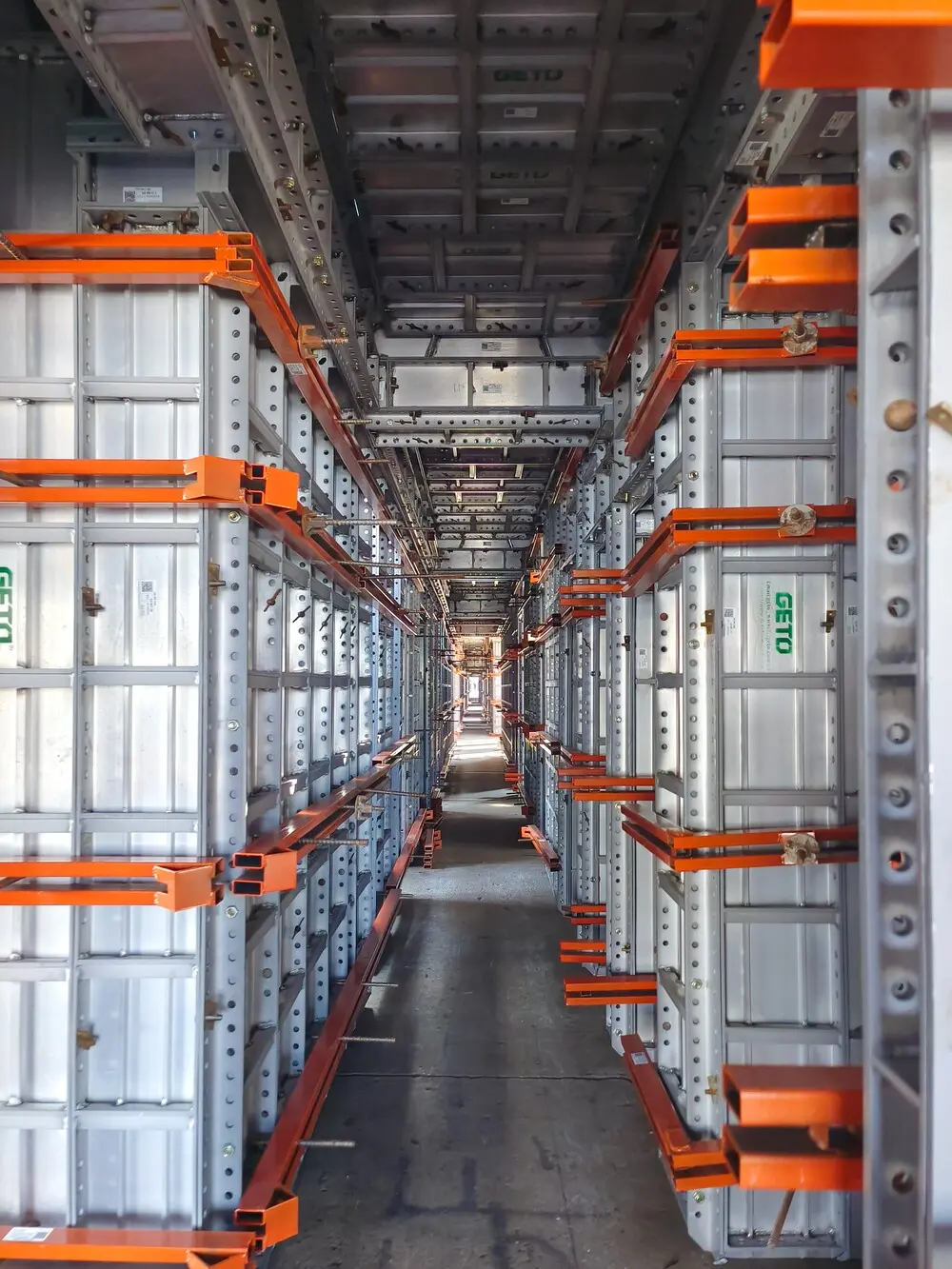

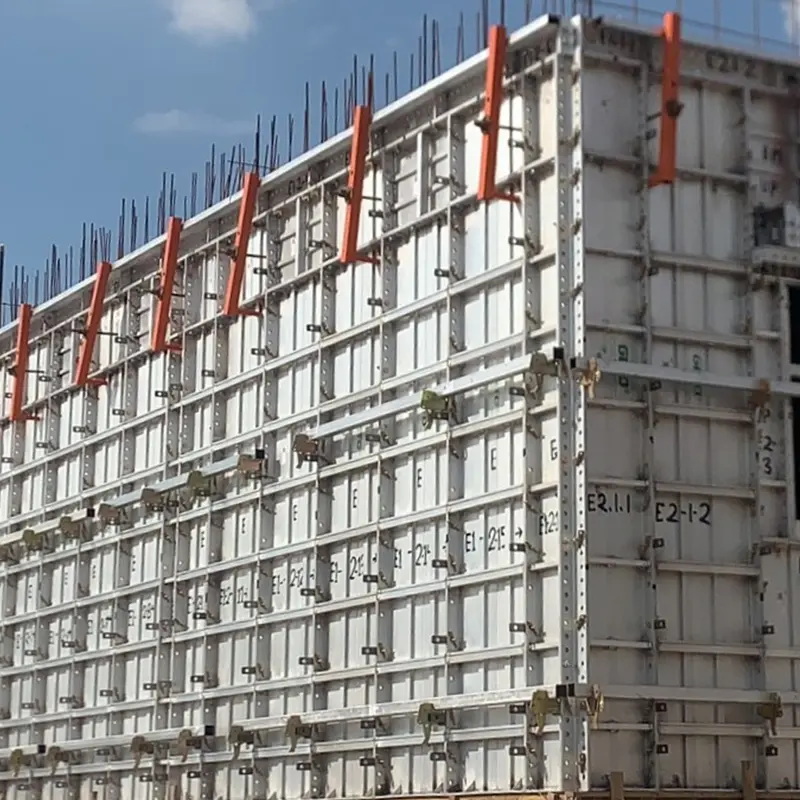

Aluminium formwork - Wall system

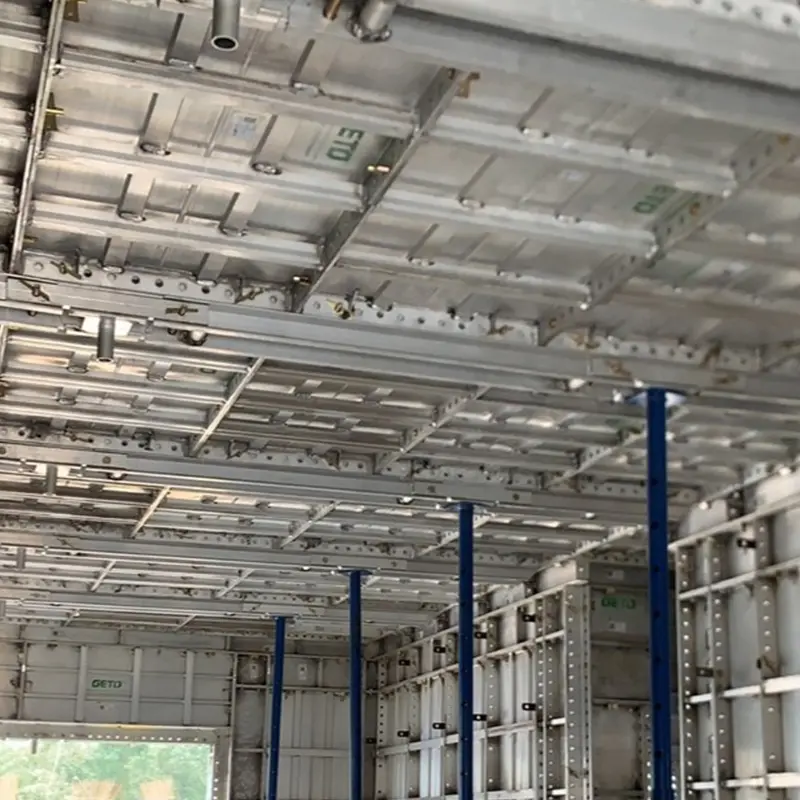

Aluminium formwork - Deck System

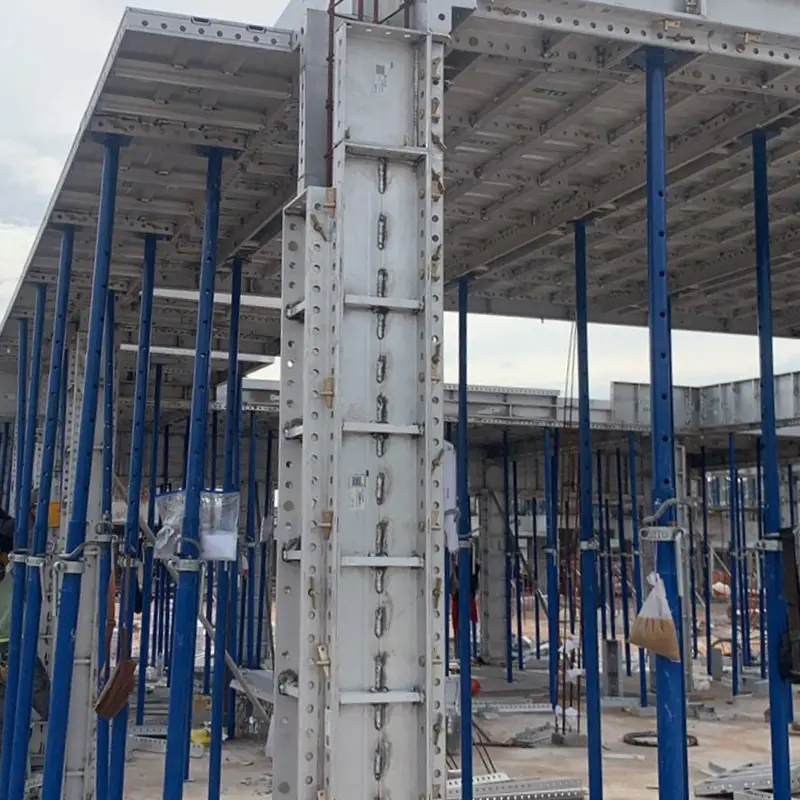

Aluminium formwork - Column

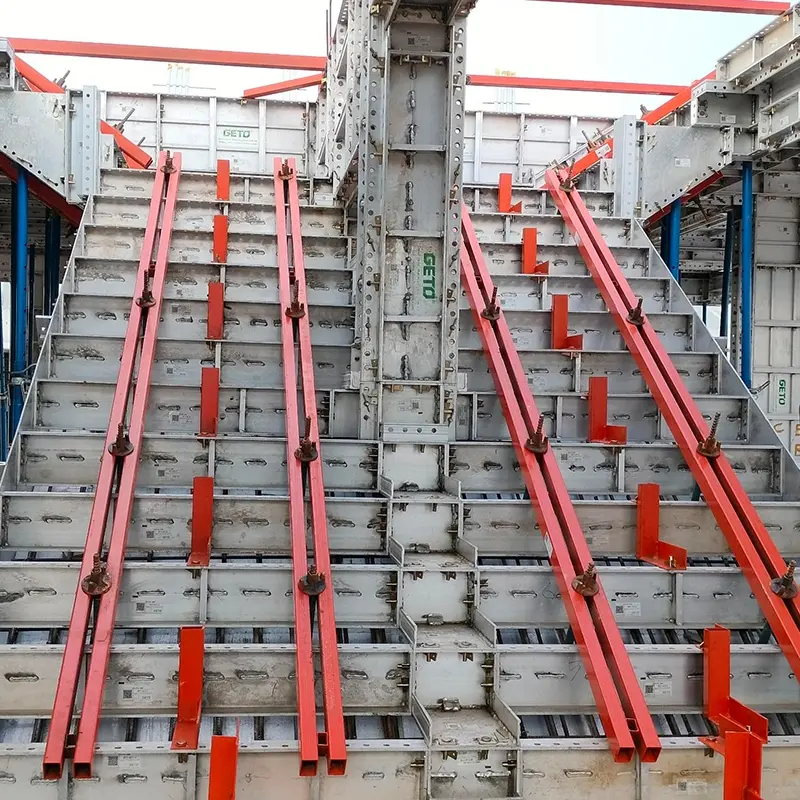

Aluminium formwork - Staircase

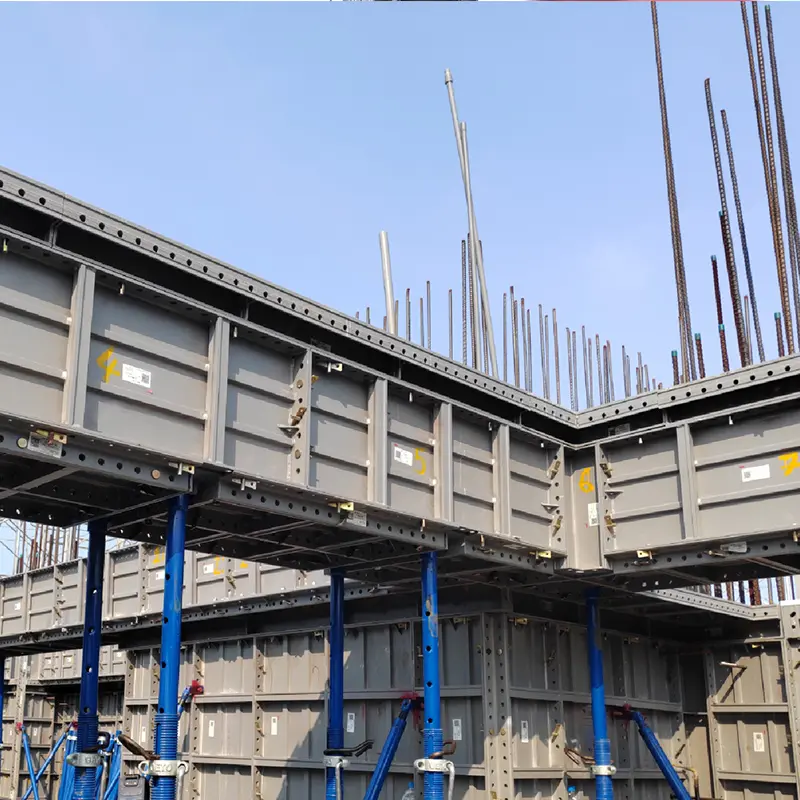

Aluminium formwork - Beam System

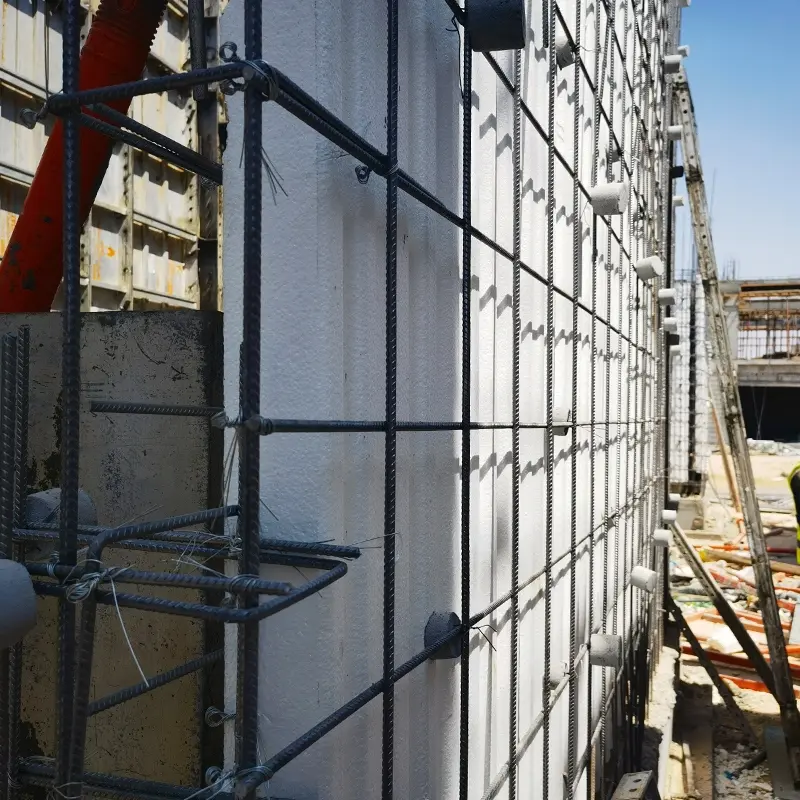

Aluminium formwork - External Wall Insulation Board
Suitable Situation:
1.What kind of project is suitable for using aluminum formwork?
Aluminum formwork is a new material to replace the traditional formwork. It is suitable for all kinds of ordinary houses, villas, high-rise office buildings and a series of modern buildings. As long as the standard floor is more than 20 floors, we recommend you to use aluminum formwork so that the overall cost is lower.
2.Can GETO aluminium formwork be used with timber formwork?
Yes, GETO can provide a full set of aluminium formwork systems, all structures of the whole project can use aluminium formwork. However, in some special parts, where the use of formwork is rare, we recommend using timber formwork. The combination of aluminium and wood can save your costs.
3.Can GETO aluminium formwork be used with prefabrication?
Yes, aluminium formwork can be combined with prefabrication. GETO would offer design plans according to the project.
Order & Cooperation
We provide flexible and customer-oriented cooperation terms to meet the diverse needs of global partners, with detailed specifications as follows:
1. Minimum Order Quantity(MOQ): You can place an order for a single unit only; we do not require a strict minimum quantity. We can adapt to different products flexibly depending on what you need for your project, even if it is just a small volume or large volume order.
2. Shipping Methods: Our choice of shipping modes includes sea and land freight. Taking your position and the amount of goods into account, we will propose the most fitting and budget-friendly way for you to get your merchandise delivered safely and punctually.

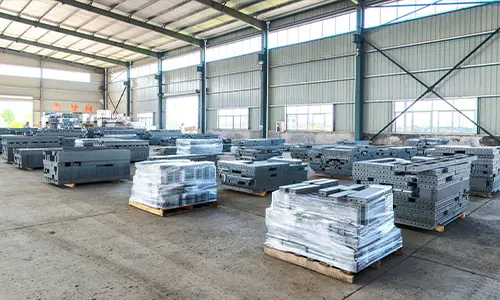

3. Packaging: We are able to use various types of packaging to ensure we meet your product's protected needs and can ship them accordingly. Some of these types are pallets, plywood crates, and wooden frame crates etc.
4. Payment Terms: Our range of payment options includes TT (Telegraphic Transfer) and LC (Letter of Credit). Payment percentages and key points are open for discussion and can be changed in a flexible manner depending on order value and the current stage of cooperation so that your funds are safe and the order process is carried out as planned.
5. Sample: We give you samples of our products that help you examine and test before making a formal order. This allows you to decide to what extent our products suffice.
6. OEM Service: We work professionally in design, production, and customization, to perform as tailor-made, OEM services for you. Providing you with holistic, end-to-end OEM solutions, happening to be totally in line with your partnership requirements, is our aim.
7. Certificate： We obtain a variety of international certificates for our products such as ISO and CE. It is our goal to supply our customers with excellent products and first-rate services that conform to the worldwide quality standards as well as our customer's expectations.
Relations： Modular Aluminum Formwork/ Reusable Aluminum Formwork/Aluminum Formwork/Aluminum Formwork/aluminium formwork system

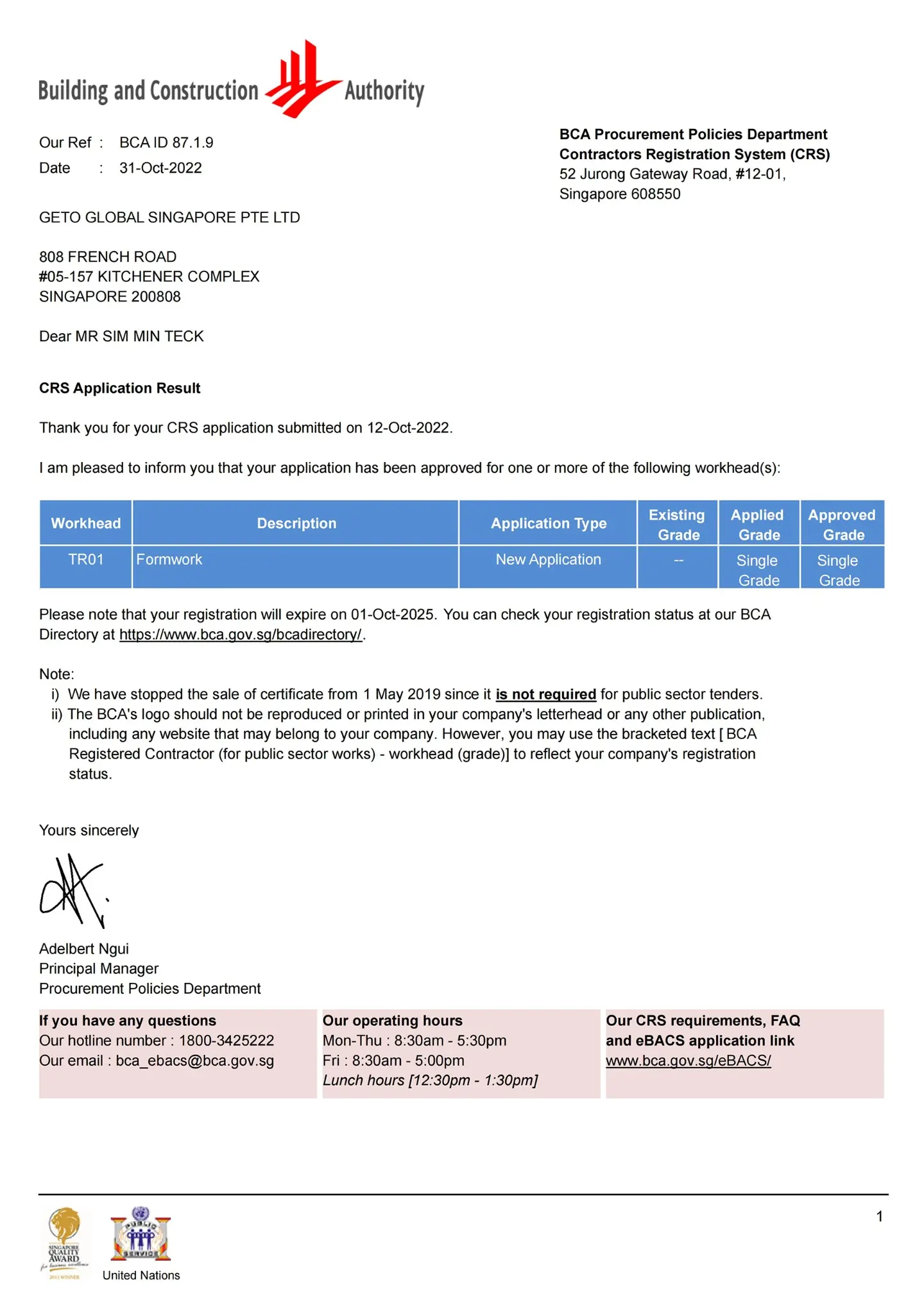

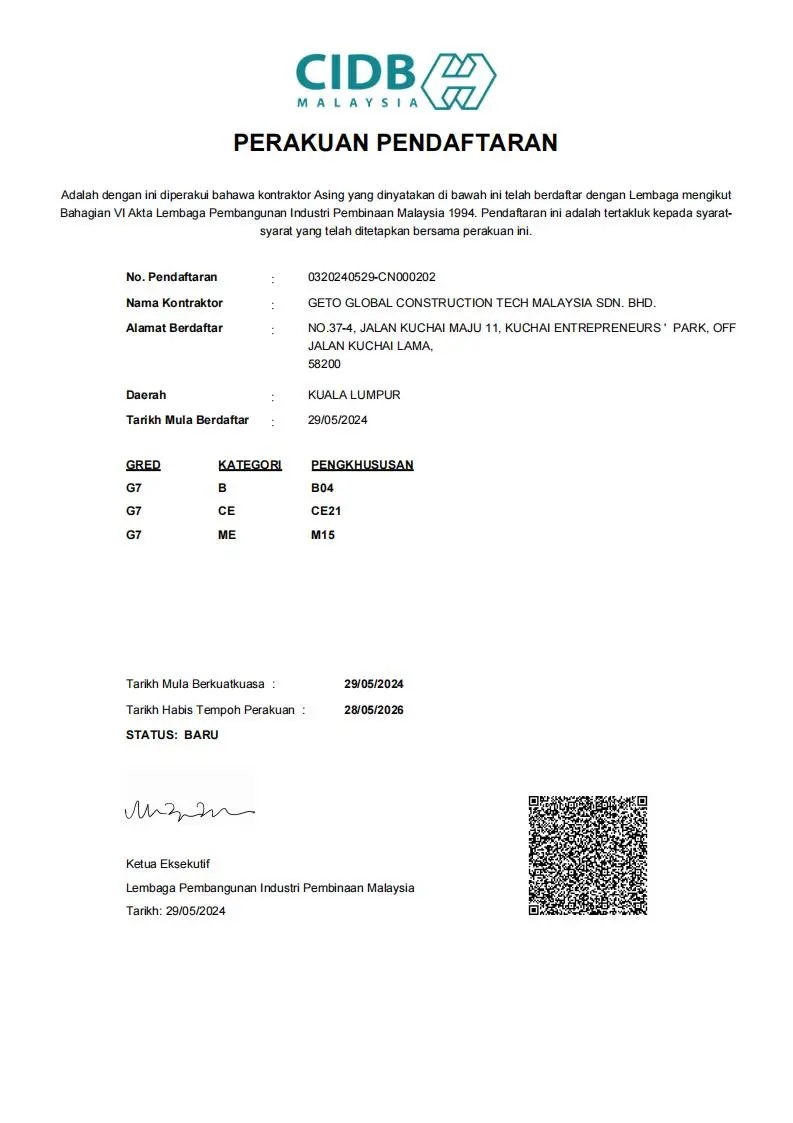

GETO GROUP was founded in 2011. At present, GETO has established 12 production bases around the world. Our products have been exported to more than 70 countries and regions, and we have registered the GETO® trademark in more than 30 countries. Our company has passed many authoritative certifications such as ISO9001 and ISO14001, and has obtained multiple international qualifications including Singapore BCA BAND2 and Malaysia CIDB G7. We have successfully established a complete overseas service system and possess localized operation capabilities.
