Ringlock Scaffolding System
- GETO
- China

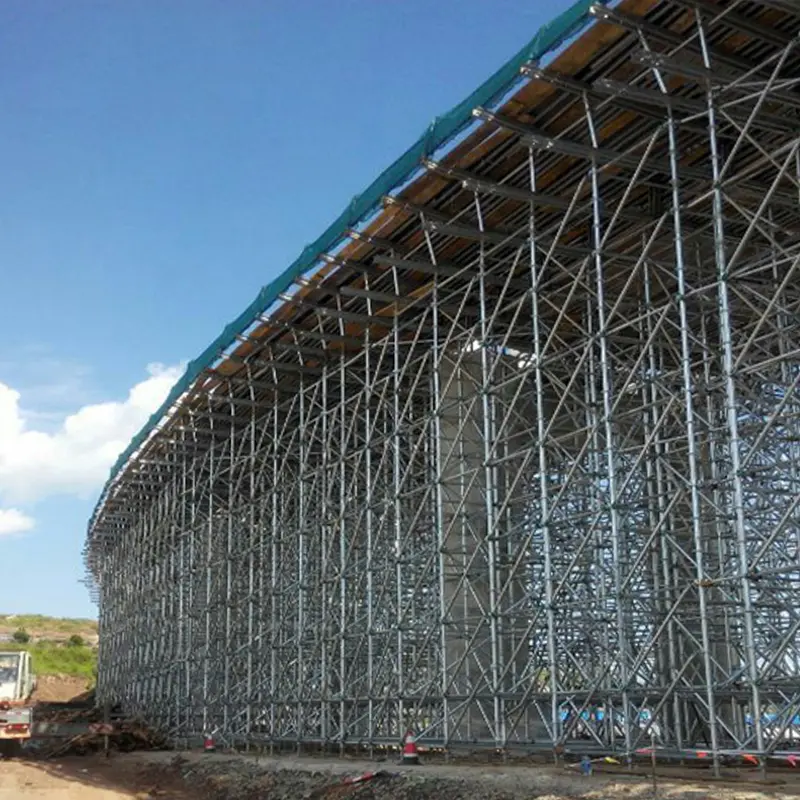

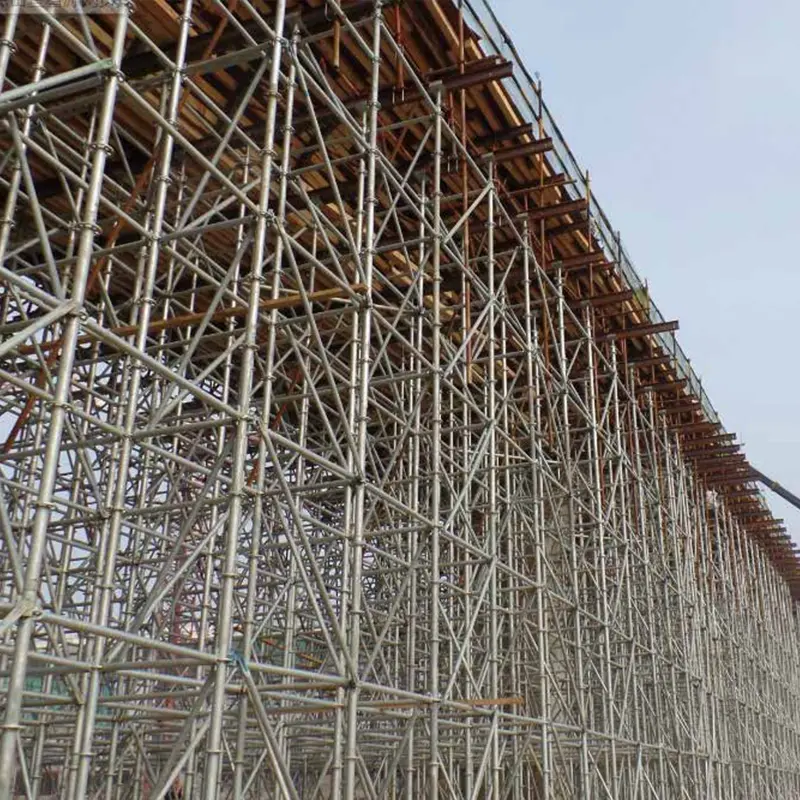

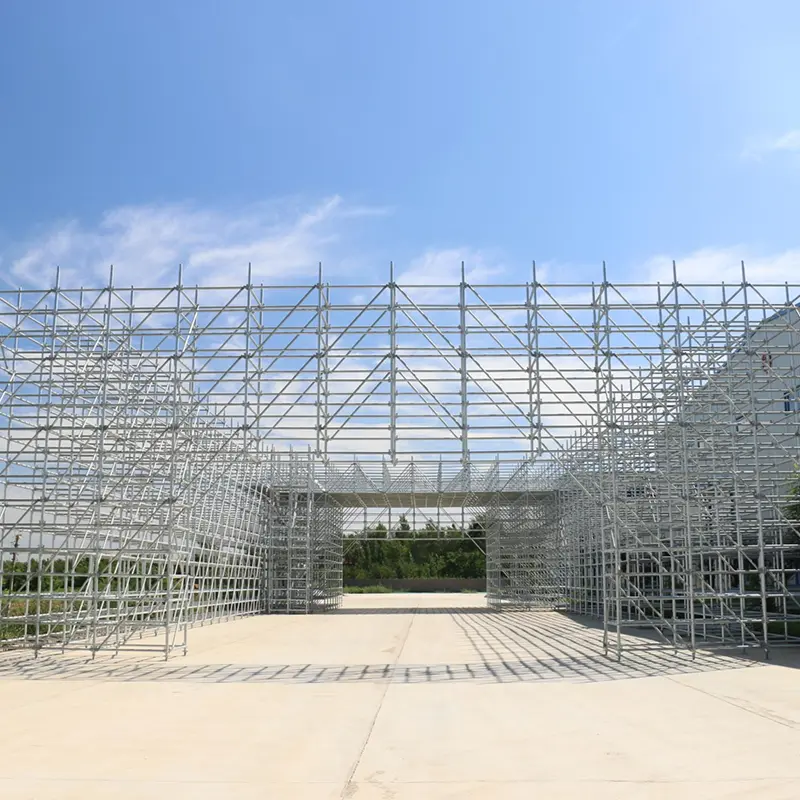

The ringlock scaffolding system is mainly used to support bridge projects, tunnel projects, factory buildings, elevated water towers, power plants, oil refineries and other special factories, and can also be used in projects such as crossing bridges, cross beams, storage shelves, large stage and background frames.
It includes M48 and M60 standards, lengths ranging from 500mm to 3000mm, and the main materials are steel Q355 and Q235.
Advantages of Ringlock Scaffolding
· Strong carrying capacity: the carrying capacity of a single pole is up to 19 tons (60 series).
· Safe and reliable: The hot-dip galvanizing anti-corrosion process ensures a long service life.
· Quick assembly: The unique design of the disc self-locking plug improves construction efficiency.
· Economical and practical: Less steel consumption and lighter weight reduce transportation and labor costs.
Specifcation of Ringlock Scaffolding
Product | Material | Length(mm) | Outside Diameter(mm) | Thickness(mm) |
Standard | Q355 | 500 | 48.3 | 3.25 |
1000 | ||||
1500 | ||||
2000 | ||||
2500 | ||||
3000 |
Product | Material | Surface Treatment | Specification(mm) |

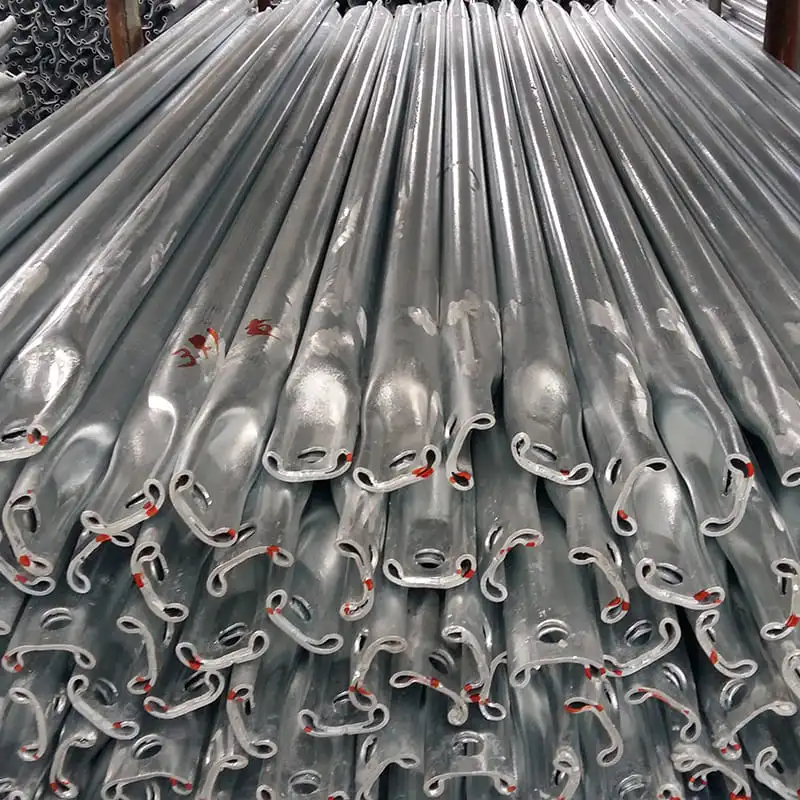

Diagonal
| Q195
| re-galvanised/hot
| 42*2.75*900*1000 |
42*2.75*1200*1000 | |||
42*2.75*1500*1000 | |||
42*2.75*1800*1000 | |||
42*2.75*900*1500 | |||
42*2.75*1200*1500 | |||
42*2.75*1500*1500 | |||
42*2.75*1800*1500 | |||
42*2.75*900*2000 | |||
42*2.75*1200*2000 | |||
42*2.75*1500*2000 | |||
42*2.75*1800*2000 |
Product | Material | Length(mm) | Outside Diameter(mm) | Thickness(mm) |
Ledger | Q235 | 300 | 48.3 | 2.75 |
600 | ||||
900 | ||||
1200 | ||||
1500 | ||||
1800 | ||||
2100 |
Components of Ringlock Scaffolding

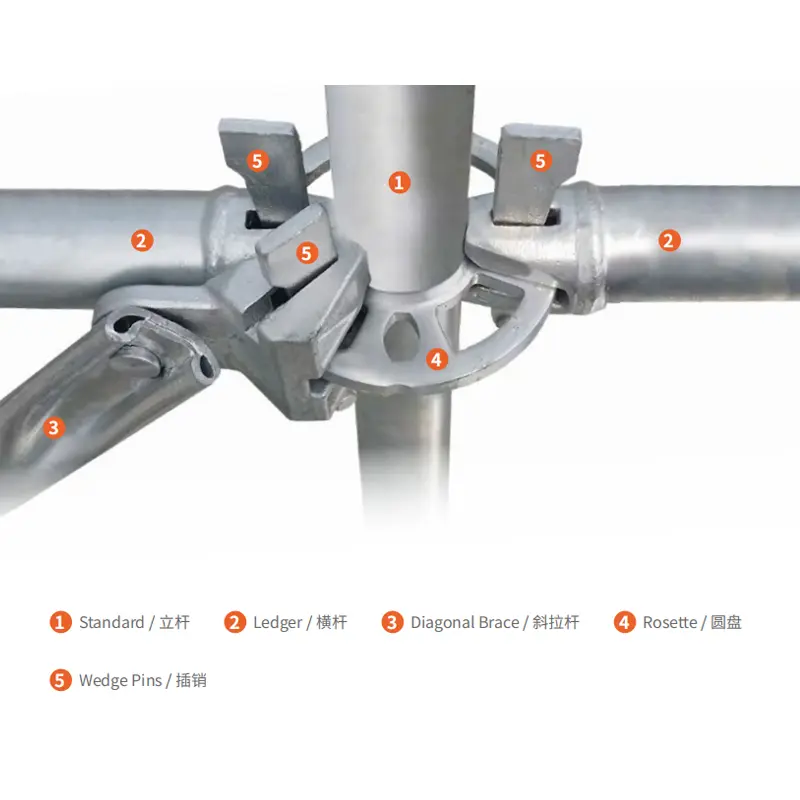

The ringlock scaffolding mainly consists of standard, ledger, diagonal brace, jack base, etc.

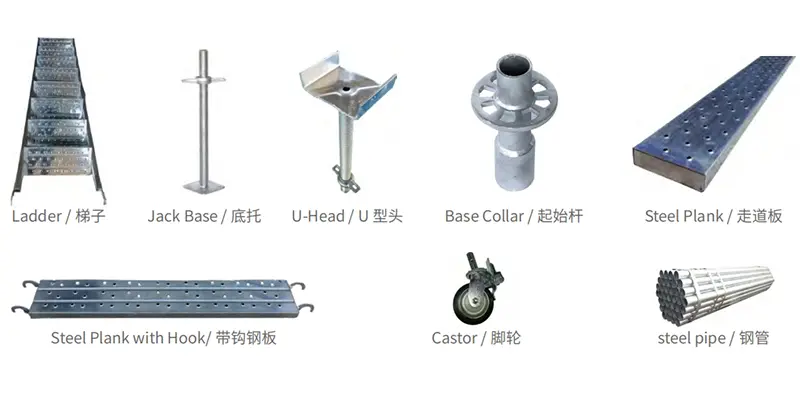

Main Accessories Of Ringlock Scaffolding
The main accessories of ringlock scaffolding consists of rosette, wedge pin, ledger head and diagonal head.

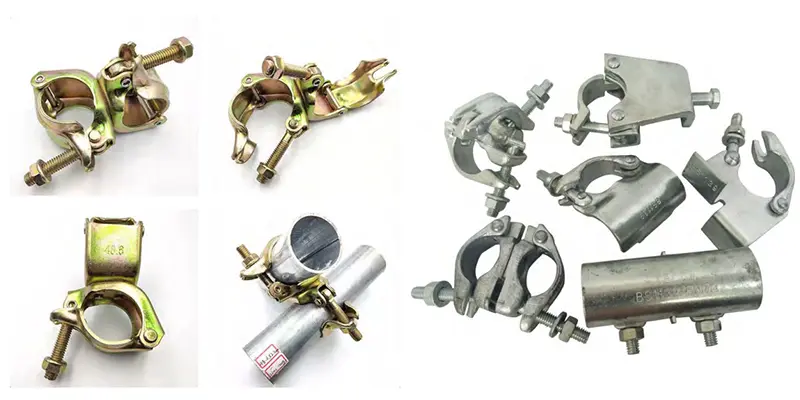

Coupler
Application
· The 48mm system is mainly applied to civil construction projects, operating platforms, etc. (construction projects with relatively small loads)
· The 60mm system is mainly applied to municipal engineering, cast-in-place beams for rail transit, swivel bridges, freight viaducts, etc. (construction projects with relatively large loads)
Order & Cooperation
We will try our best to meet the diverse needs of global partners, with detailed specifications as follows:
1. Minimum Order Quantity(MOQ): You can place an order for a single unit only; we do not require a strict minimum quantity. We can adapt to different products flexibly depending on what you need for your project, even if it is just a small volume or large volume order.
2.Packaging Detail: All products are packaged in export-standard packaging, we are able to use various types of packaging to ensure we meet your product's protected needs and can ship them accordingly. Some of these types are pallets, plywood crates, and wooden frame crates etc.
3. Payment Terms: Our range of payment options includes TT (Telegraphic Transfer) and LC (Letter of Credit). Payment percentages and key points are open for discussion and can be changed in a flexible manner depending on order value and the current stage of cooperation so that your funds are safe and the order process is carried out as planned.
4. Logo Customization: We support logo customization service. According to your brand needs, helping you enhance brand exposure.
5. Certificate： Our products have obtained international certification certificates such as ISO etc, and we are committed to providing customers with high-quality products and professional services to meet global quality standards and customer expectations.
GETO GROUP was founded in 2011. At present, GETO has established 12 production bases around the world. Our products have been exported to more than 70 countries and regions, and we have registered the GETO® trademark in more than 30 countries. Our company has passed many authoritative certifications such as ISO9001 and ISO14001, and has obtained multiple international qualifications including Singapore BCA BAND2 and Malaysia CIDB G7. We have successfully established a complete overseas service system and possess localized operation capabilities.
With over 13 years of manufacturing experience and a group of more than 500 highly skilled professionals, we mainly focus on R&D and manufacturing of aluminum film products, with an annual production capacity of 5 million square meters. Our products are mainly exported to major markets, such as the Middle East (Saudi Arabia, UAE) and Southeast Asia (Singapore, Malaysia).
