Shoring Systems

Tower supports are assembled truss formwork supports with a height of up to 22.9 meters and above. Modular tower support with high load-bearing capacity.

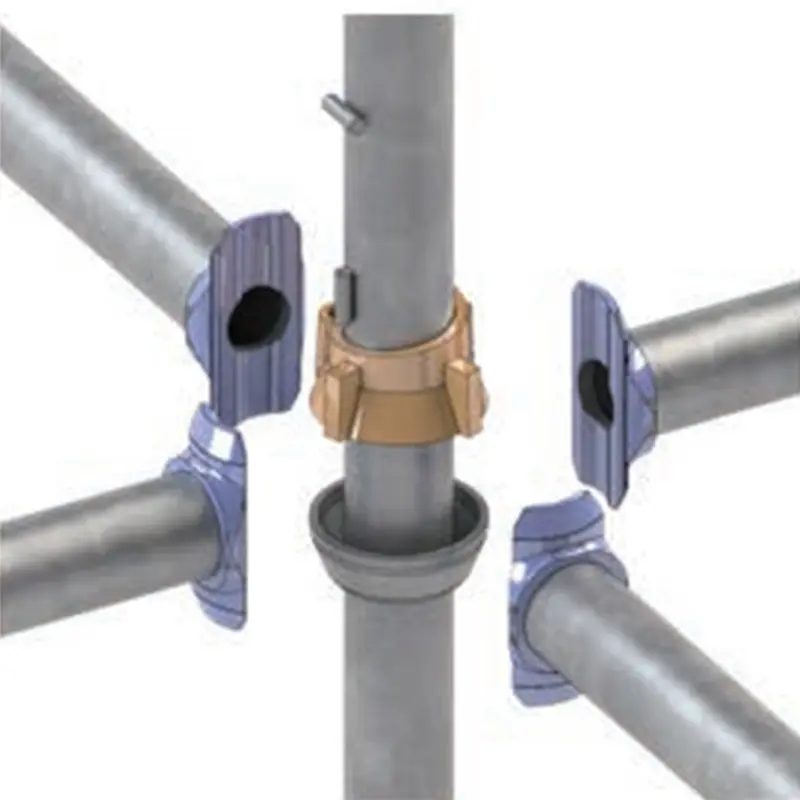

The Duralok Shoring System is widely applied in various fields, including airport construction, railway engineering, highway bridges, metro depots and stations, water conservancy and hydropower projects, as well as general building construction. Compared with conventional products, this system significantly reduces material consumption, optimizes on-site space utilization, alleviates transportation pressure, and improves overall construction efficiency.
In Duralok Shoring System, the standards, ledgers, and diagonal braces all have a diameter of 48.3mm, a wall thickness of 3.2mm, and are made of Q355B steel. Compliant with European standards.

H-Frame Scaffolding is a kind of scaffolding, which is widely used in buildings, halls, bridges, viaducts, tunnels, etc., or as the main support of table formwork.

The ringlock scaffolding system is mainly used to support bridge projects, tunnel projects, factory buildings, elevated water towers, power plants, oil refineries and other special factories, and can also be used in projects such as crossing bridges, cross beams, storage shelves, large stage and background frames.
It includes M48 and M60 standards, lengths ranging from 500mm to 3000mm, and the main materials are steel Q355 and Q235.

The steel prop is a structure used to support the floorslab, which plays a supporting and bearing role in the process of concrete pouring and shaping.

Aluminium alloy I-beam ( Aluminium beam) is mainly used to support and strengthen the building structure, which can bear certain loads, and improve the stability and safety of buildings. Generally, the aluminium beam is marked with 6061, and 6063 is also used sometimes. The hardness and tensile strength of aluminium alloy vary with its state

Formwork Beam System includes the aluminium beam system and double U-steel system, compatible with other supporting systems in the same series.
This system accommodates various support spacings, ensuring large spacing support design while maximizing material efficiency. The aluminum beam and double U-steel systems serve as the top framework for support systems, offering high strength and rigidity.

Modular Building Shoring System is widely used in modular construction and bridge engineering. With both the base and top props designed with telescopic rods, it offers a wide adjustment range and excellent stability. This system is especially suitable for early stripping conditions in building construction and complex foundation conditions.
In Modular Building Shoring System, the standards have a diameter of 83 mm, a wall thickness of 2 mm, and are made of Q355B steel. Compliant with European standards.

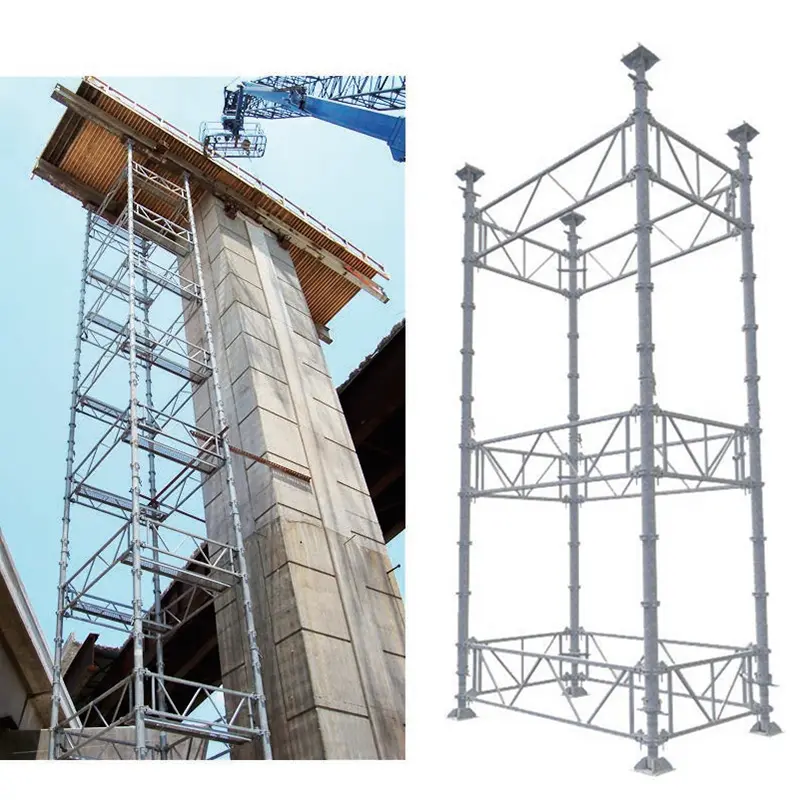

Truss Shoring System is widely applied in projects with complex engineering conditions, particularly in cast-in-place box girder formwork for uneven terrains, bridge reinforcement and dismantling works, heavy-load concrete casting support, gantry-type supports spanning roads and rivers, and steel structure erection.
