What Are Safety Screen Systems Used For?
Introduction As skyscrapers pierce the clouds, the "safety bottom line" at construction sites rises accordingly. Hundreds of meters in the air, a falling screw can be not only a property loss but also a fatal risk. For modern construction contractors, how to balance construcion speed, cost control, and ultimate safety? The answer often points to a key piece of construction equipment—the Safety Screen System.
If you are looking for the ultimate solution for the protection of high-rise building facades, or want to understand how the GETO safety screen system revolutionizes traditional climbing scaffolding through hydraulic technology, this article will provide you with a comprehensive guide from definition and principles to selection. Let's delve into what safety screen systems are used for and why they have become standard equipment on landmark buildings worldwide.
What is a Safety Screen System?
What is a Safety Screen?
In the field of construction engineering, a safety screen (safety protection screen/climbing scaffolding net) is a protective structure installed around the perimeter of a building's facade. Its core mission is very straightforward: to create a physical barrier to prevent accidental falls and to intercept potentially falling construction materials or tools.
Unlike traditional green safety nets, modern safety screens typically use perforated metal panels or high-strength steel mesh, and are mostly used in the construction of high-rise and super high-rise buildings with more than 20 stories, acting as a "golden shield" for the building's facade.
What is a Safety Screen System?
When we talk about a safety screen system, we are referring not just to the net itself, but to a complete, mobile engineering system.
A standard safety system consists of the following core components:
• Steel Frame: The skeleton of the system, providing rigid support.
• Protective Screen: Fully or semi-sealed metal panels providing wind, dust, and fall protection.
• Lifting Mechanism: Utilizing hydraulic or tower crane power, the entire system is raised as the building ascends.
• Anchor System: Securely anchors the system to the building's floor slabs, beams, or shear walls.
This systematic design allows it to tightly wrap around the construction level at the top of the building like a "glove," rising in tandem with the structure's growth.
What is the Safety Screen System primarily used for?
The applications of construction safety screens extend far beyond simple "fences." They are a core component of modern construction site management, primarily used in the following three aspects:
Preventing Falls from Heights
This is the system's most fundamental purpose. In high-altitude work, gravity is the greatest enemy.
• Personnel Protection: Provides psychological safety and physical fall protection for workers operating at the building's edge.
• Impact Protection: Prevents concrete blocks, rebar fragments, tools, etc., from falling into the street or onto floors below, protecting the public and people on the ground.
Controlling Construction Risks at the Building's Exterior
The safety screen system creates a relatively enclosed and stable microenvironment for exterior wall work:
• Exterior formwork construction: Workers can safely dismantle and install aluminum formwork inside the safety screen.
• Coordination with climbing scaffolding construction: Seamless integration with the aluminum formwork system enables streamlined construction.
• Concrete pouring stage protection: Reduces the impact of wind on pouring quality.
Enhancing the Overall Safety Level of the Construction Site
In Europe, America, and other developed regions, the use of construction safety screens is often a compliance requirement. It helps projects:
• Meet stringent international HSE (Health, Safety, and Environment) standards.
• Significantly reduce the risk of work stoppages and compensation due to safety accidents.
• Enhance the contractor's brand image and showcase a "safety first" corporate culture.
How does the Safety Screen System work?
Basic Structure and Principle of the Safety Screen System
The working logic of the Safety Screen System can be summarized as "attachment-lifting-fixing".
• The main load-bearing steel structure is fixed to the already poured floor via attachment supports.
• The guide rail system guides the safety screen to slide vertically upwards.
• The hydraulic or electric lifting system provides power. GETO recommends using GETO hydraulic drive system, which is smoother, has a lower failure rate, and is more cost-effective than traditional electric hoists.
Core Advantages of Construction Safety Screens
Enhanced Construction Safety (Safety First)
Construction safety screens offer a fully sealed design (including guide rails, corners, and protrusions), creating an impenetrable barrier. The fall arrestor installed during climbing is independent; even if the lifting system malfunctions, the fall arrestor locks instantly, minimizing safety issues caused by operational errors.
Improved Construction Efficiency
• No Re-erecting: Assemble once and use it until the top is reached.
• Rapid Lifting: The hydraulic system can complete lifting in a short time, without occupying tower crane time (if it's a self-climbing type), allowing the tower crane to focus on lifting steel bars and concrete.
Cost-Effectiveness
While the initial investment may seem higher than scaffolding, the overall cost-effectiveness is very high:
• Reusability: Steel components have a long lifespan, which is a major reason for the popularity of the GETO system.
• High versatility: Component compatibility exceeds 95%, facilitating inventory management.
• Reduced labor costs: The labor required for dismantling, transportation, and operation is significantly lower than traditional solutions.
Technical Advantages of the GETO Safety Screen System
As an industry pioneer, the GETO safety screen system features refined innovations tailored to different building types. We understand the differences in facades between commercial and residential buildings, and therefore offer targeted solutions.
Customized Design for Residential and Commercial Buildings
• Residential Screen: Residential buildings typically have complex facades and many balconies. The GETO system features multiple platform levels, perfectly covering the external construction area and facilitating workers to handle complex details.
• Commercial Screen: Office building facades are flat, typically requiring work only from the internal edges. GETO's lightweight system, with fewer platform layers, is more economical and efficient.
GETO's Technical Strengths
High Wind Resistance Design: Our system undergoes rigorous wind tunnel testing and can withstand wind loads up to level 9 without additional reinforcement.
Hydraulic Drive Advantages: GETO utilizes an advanced hydraulic cylinder and pump station system, offering more precise control and lower maintenance costs than electric hoists.
Versatile Adaptability: Even on irregularly shaped facades with varying or constant tilt angles, GETO's adjustable floor supports adapt perfectly. Platform panels and sealing covers can be completely flush with the ground, eliminating tripping hazard.

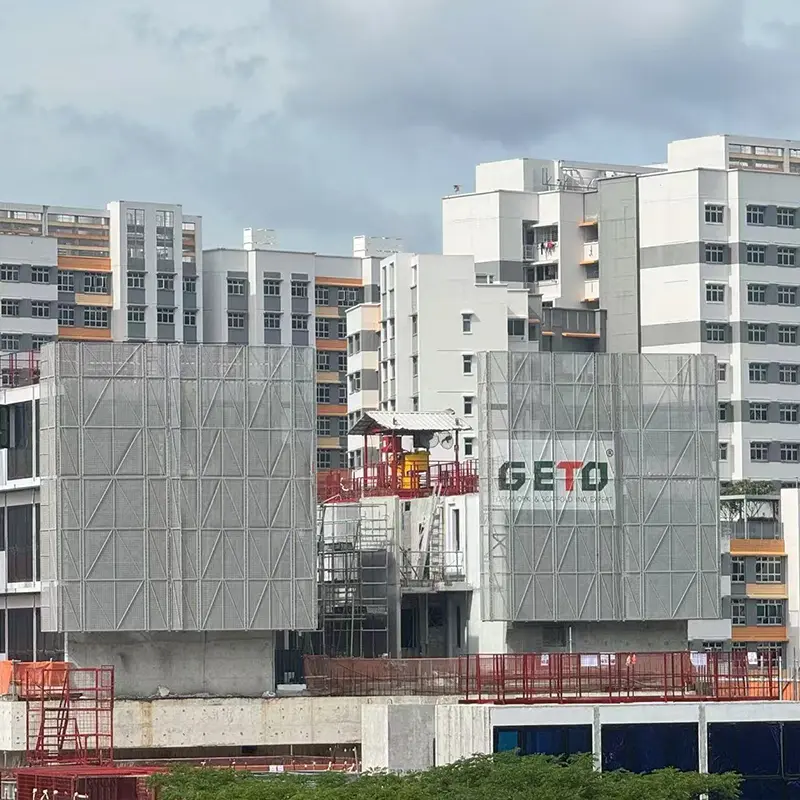

Global Project Application Cases: From high-end apartments in Southeast Asia to commercial complexes in the Middle East, the GETO safety screen system is safeguarding landmarks worldwide. We have proven experience in implementing safety screens in complex mixed-use buildings, dense apartment buildings, and modern office buildings.
Which Building Projects is Safety Screen Applicable To?
Vertically growing buildings are all suitable for safety screen systems:
1. High-rise residential buildings: Multiple standard floors maximize the advantages of climbing scaffolding.
2. Super high-rise office buildings: Extremely high requirements for both appearance and safety.
3. Commercial complexes: Complex structures require flexible protection solutions.
4. Hotel projects: Low noise and a clean appearance must be maintained during construction.
5. Urban mixed-use development projects: The first choice for large-scale construction.
